100mm Metal Ball Castor with PU Tyre - Select Attachment Fitting

Features

• The Polyurethane (PU) tyre has outstanding abrasion resistance and is unaffected by oils, acids, and alkalis chemicals.
• Unlike rubber, it won't perish!
• It's heavy-duty zinc alloy construction can handle a heay load.
• Swivel functionality enables your unit to turn in any direction
• Correct configuration of left and right wheels creates a straight tracking unit - essential for trolleys and storage units.

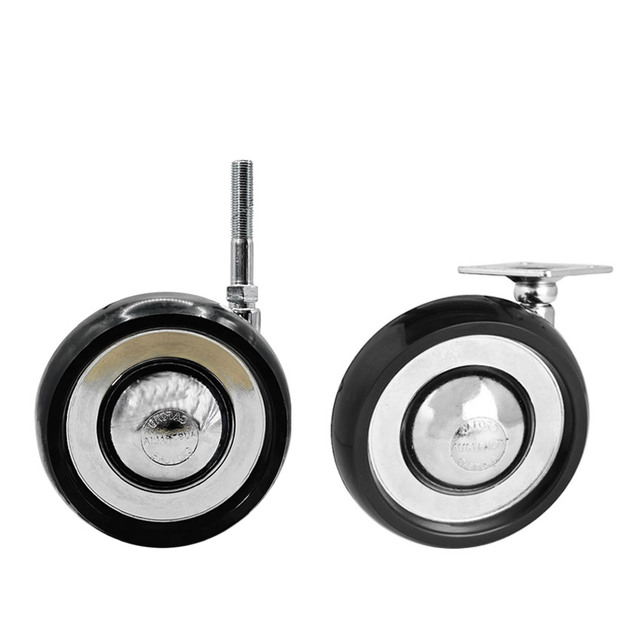

• Select any attachment from our select range of fittings to best suit your furniture or equipment: (To select fitting above, first click on the Size/Type of fitting you require, then, using the OPTION dropdown box, select either left or right). Refer to the associated image for the correct configuration of left and right hand wheels.
• Square Base Plate: suited to furniture and equipment with a thin mounting surface with insufficient depth for a castor and stem system to fit.
• UNF Thread (for Expanding sockets): For tube furniture legs or frames with expanding socket fittings. The beauty of an expanding socket fitting is its ability to work with a range of tube dimensions, so you don't need to search for an exact match.
• Castors are supplied with fitting component only. For Castor and Connecting Socket or Screw Sets, please refer to the 'Associated Items' tab.

Specifications

Castor Wheel Specifications:

• Wheel diameter: 100mm
• Wheel type: metal ball castor with PU tyre
• Mount height: 111mm
• Swivel radius: 80mm
• Load capacity: 55kg per castor

Fitting Options and Specifications:

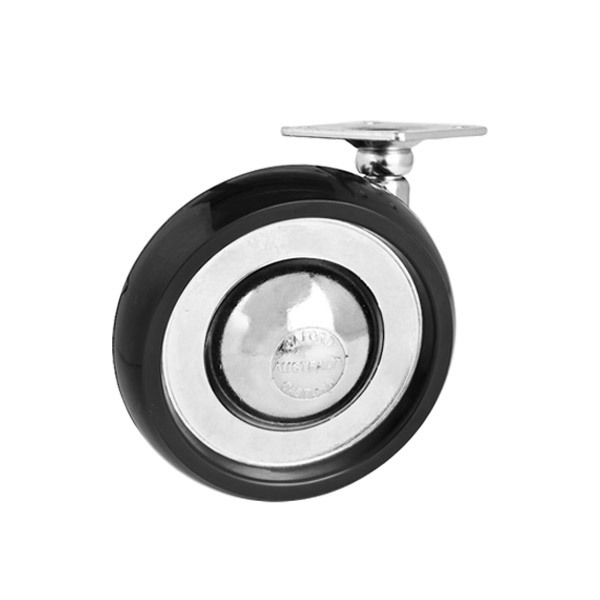

Screw Plate Fitting:

• Type: Square base plate for screw fastening
• Application: The square base plate attachment is particularly suited to furniture with a thin mounting surface where a castor and pin stem system cannot be fitted.
• Plate Dimensions: 45mm
• Screw holes: 4x 5mm diameter holes
• Distance between hole centres: 32mm
• Compatible Components: 10 gauge screws for mounting the baseplate to flat board and timber surfaces.

UNF Thread Fitting:

• Fitting:
• 3/8" UNF x 50mm Expanding Fitting
• 25mm of the castor's pintle stem is threaded so that the castor screws into the expanding socket nut.
• 1/2" UNF x 25mm Expanding Fitting
• Socket: refer to the 'Option' selection list above
• Important note: the 3/8 UNF is a fine-pitch thread with more threads per inch; it will not work with the 3/8 BSW
